MODEL HP2100-SRT

Cousins Packaging
2100 SRT (HP/LP) Stretch Wrapper

Unique semi-automatic pallet wrapper from Basic Packaging supply.

  • Dual Turntable
  • Extended Mast/Tower
  • Cold Weather Package
  • Full Automation Package
Call: 888-998-8766
Call now
Contact Us
Browse other models
Training Available
Low Cost
Installation Available
Safety Feature

Training Available

Low Cost

Installation Available

Safety Feature

The Product

Explore the pinnacle of pallet wrapping solutions with our Cousins Stretch Wrapper models, designed for both High Profile (HP) and Low Profile (LP) applications. Our semi-automatic HP2100-SRT and its LP counterpart are engineered for flexibility, offering:

  • Intuitive Operation: Easy-to-navigate HMI operator interface ensures hassle-free usage.
  • Customization: Tailor wrap patterns to various load types, enhancing stability and protection.
  • Cost-Effective: Featuring the Super Rapid Thread II powered Pre-stretch film carriage for significant film savings.
  • Versatile Options: Adapt to any need with options for scale packages, oversized loads, and auto film cutting, among others.

Ideal for a wide range of environments and load types, our models promise to elevate your wrapping process with unmatched efficiency and adaptability.

Specifications

Cousins Packaging machines utilize non-proprietary UL/CSA approved parts where feasible.  The equipment is designed and built to conform to NFPA 70 NEC and NFPA 79 Electrical Standard for Industrial Machinery.

Production Speed

Film Delivery System

Load Capacity

Electronic Control
Features

High Profile Turntable

Automatic Film Cutter

Pallet Lock

Portable Structural
Features

THE-SWITCH-HP-SW_2000x

High Profile Pallet
Wrapper

Best in its class with standard features such as a large load wrapping capacity, all AC drives, HMI operator interface with diagnostic information provided, 3 separate wrap patterns, and much more.

PRODUCTION SPEED:
  • 35 loads per hour throughout (Single Turntable)
    • NOTE: Process rates will vary with load size, number of wraps & forklift load/unload time
LOAD CAPACITY:
  • Maximum load weight:
    • 4,500 lbs dynamic – 10,000 lbs static
  • Maximum load size to safely clear the tower:
    • 67” x 67” (95”diagonal) x 75” H
TURNTABLE:
  • 48″ octagonal 5/16″ thick formed steel plate turntable
  • 4 point caster support system
  • Turntable height 11″ from floor
  • ANSI # 50 direct chain drive c/w chain tensioner
  • 3-12 RPM rotational speed c/w soft start acceleration
  • 1/2 HP AC variable speed motor
  • Final revolution deceleration and positive stop alignment
  • Front and back forklift ports for easy movement
  • Accu-Count exact turntable positioning system for additional film savings!
FILM CARRIAGE ELEVATOR:
  • 1/2 HP AC variable speed motor
  • ANSI #40 direct chain drive c/w shock dampener & Anti-Fall Safety Device
FILM DELIVERY SYSTEM:
  • Super Rapid Thread II ™ 20″ capacity pre-stretch film carriage
  • Special Film Threading Device
    • Uniquely orientates the sticky side of the film against the pre-stretch rollers and the inside of the load
  • 1/2 HP AC variable speed motor
  • Fully electronic dynamic dancer corner compensation
  • 33% to 313% fixed stretch capability
  • Pre-stretch ratio variable using easy sprocket change
  • Carriage Descent Obstruction Safety Shut-Off Device
  • Rapid Thread ™ Safety Door with auto power cut-off switch
  • Side mounted film carriage for operator convenience and safety
  • Superior film-to-roller contact area
  • Lifetime warranty on pre-stretch rollers
ELECTRICAL INPUT:
  • 115 Volts 1 Phase 60 Hz 15 Amps

CONTROL:
  • Electronic controls with LCD operator interface
  • Power Off – On – Reset switch & Power On indicator light
  • Single-button Auto Wrap Cycle Start/Pause
  • Cycle Pause for applying top sheets
  • Reinforce Wrap control for mid-wrapping
  • Base or Top Wraps First program
  • Up Only or Up/Down wrap program
  • Emergency Stop button
  • Turntable Jog button
  • Film Carriage Lower & Raise buttons
  • Film tension (Force-to-Load) control
  • Separate film carriage raise & lower speed controls
  • Operator programmable turntable speed control
  • Triple beam auto load height sensing photo-eye, detects dark or shiny loads
  • Separate 1 to 12 revolution top & bottom wrap control
  • Selectable Reduced Film Tension parameters for wrapping top and/or bottom of load
  • A – B – C wrap program selector with capability to input and store unique wrapping parameters for each program
  • PASSWORD PROTECTION – The wrap program selection and wrap program setting can be password protected when ordered from the factory (must be specified on the PO)
STRUCTURAL:
  • All structural steel construction
  • Forklift truck portable base structure design
    • lifting tubes included for front and rear access
  • Electro-static powder coated paint finish

MISCELLANEOUS OPTIONS:
  • Starter Spare Parts Kit – recommended minimum quantity of parts to stock for this specific machine
  • Ramp for manual pallet jack loading – 48” W x 60” L
    • Powered pallet jacks may require a Porch Extension Option detailed below
  • 24” L x 48” W Porch Extension – for powered pallet jacks
  • 40” L x 48” W Porch Extension – for powered pallet jacks
  • Tower Extension – for 110” wrap height capability (standard is 80”)
    • NOTE: All machines with tower extensions will be hinged and shipped knocked-down.
  • 2ft. Base Extension – for maximum 119” diagonal (71” diagonal is standard)
  • Dusty Package – Complete sealing of the control panel and use of sealing rings on any conduit entries into the control panel
  • Cold Weather Package – down to 33°F
  • Freezer Package (32° F to -20° F) – specify minimum temperature
  • Beacon Light with Red & Green Lens – indicates run, clear or fault conditions
  • 30” film carriage – accommodates standard 20” and 30” wide films
  • Dual Turntables – add second turntable to increase production.
    • NOTE: Includes a Turntable Left-Right momentary selector switch with indicator lights to show the currently selected turntable and magnetic latching relay
LOAD CELL & SCALE PACKAGES:
  • Built-in Load Cells Scale Package – with GSE250 Digital Weight Indicator
    • NOTE 1: If to be used with pallet jacks the OSCBIRMP Scale Ramp option is required
    • NOTE 2: Machine with base extension option requires a factory quote
    • NOTE 3: Not legal for trade – upgrade available as a factory quote
  • Built-In Load Cells Scale Package Ramp – 72” L x 48” W for use with built-in load cells
  • Upgrade digital weight indicator from GSE250 model to Matrix 365. The standard model GSE250 indicator is for load weight only and communication features are not available. Matrix 365 indicators have programming features for printers and communication capability
  • 24” L x 48” W scale porch extension for use with built-in load cells
  • 40” L x 48” W scale porch extension for use with built-in load cells
AIR FLOW & PALLET LOCK:
  • Film splitter – 20” – manual device to split a 20” roll of film into two (2) 10” wide webs, includes a manually adjustable roping device that “ropes” the film webs to the desired size before being applied to load
  • Film splitter – 30” – manual device to split a 30” roll of film into three (3) 10” wide webs, includes a manually adjustable roping device that “ropes” the film webs to the desired size before being applied to load. Includes OP30 30” film carriage option
  • Pallet Lock Roping Device – the most effective method of securing the load to the pallet. Easily programmed using the touchscreen to apply the roped or normal full web film for additional holding force where needed, air flow if required and to prevent film breakage on sharp product or pallet corners
    • NOTE: AIR REQUIRED – Includes a filter-regulator unit and loose-shipped quiet air compressor
  • Delete the filter-regulator unit and loose-shipped quiet air compressor included in option OPLRD if customer supplies the necessary pneumatic requirement

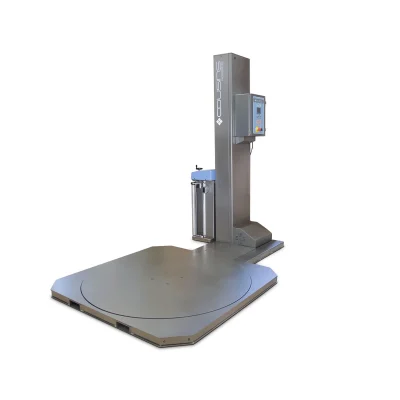

LP-2100-SRT_2000x

Low Profile Pallet
Wrapper

The Cousins LP-2100 Stretch Wrap Machine has the production speed, load capacity, turntable abilities and control features to ensure pallets are wrapped and contained securely for shipping, storage and transfer. With a wide range of technical features, customizable construction and modification parts, the Cousins Model LP-2100 is suited to fit your every production need.

PRODUCTION SPEED:
  • 35 loads per hour throughout
    • NOTE: Process rates will vary with load size, number of wraps & forklift load/unload time
LOAD CAPACITY:
  • Maximum load weight:
    • 4,000 lbs dynamic – 10,000 lbs static
  • Maximum load size to safely clear the tower:
    • 50” x 50” (71” diagonal) x 82” H
TURNTABLE:
  • 57″ diameter laser-cut steel plate with surround deck protection
  • Maintenance-free – 42 roller bearing support system
  • Turntable height 2.75″ from floor
  • ANSI # 50 direct chain drive c/w chain tensioner
  • 3-12 RPM rotational speed c/w soft start acceleration
  • 1/2 HP AC variable speed motor
  • Final revolution deceleration and positive stop alignment
  • Rugged surround deck for added protection, 3 sided loading and pit mounting
  • Front and back forklift ports for easy movement
  • Accu-Count exact turntable positioning system for additional film savings!
  • Optional loading ramp 60″ long x 48″ wide complete with 10″ level porch area available
FILM CARRIAGE ELEVATOR:
  • 1/2 HP AC variable speed motor
  • ANSI #40 direct chain drive c/w shock dampener & Anti-Fall Safety Device
  • Maintenance free carriage guidance system
FILM DELIVERY SYSTEM:
  • Super Rapid Thread II ™ 20″ capacity pre-stretch film carriage
  • Special Film Threading Device
    • Uniquely orientates the sticky side of the film against the pre-stretch rollers and the inside of the load
  • 1/2 HP AC variable speed motor
  • Fully electronic dynamic dancer corner compensation
  • 33% to 313% fixed stretch capability
  • Pre-stretch ratio variable using easy sprocket change
  • Carriage Descent Obstruction Safety Shut-Off Device
  • Rapid Thread ™ Safety Door with auto power cut-off switch
  • Side mounted film carriage for operator convenience and safety
  • Superior film-to-roller contact area
  • Lifetime warranty on pre-stretch rollers
ELECTRICAL INPUT:
  • 115 Volts 1 Phase 60 Hz 20 Amps

CONTROL:
  • Electronic controls with LCD operator interface
  • Power Off – On – Reset switch & Power On indicator light
  • Single-button Auto Wrap Cycle Start/Pause
  • Cycle Pause for applying top sheets
  • Reinforce Wrap control for mid-wrapping
  • Base or Top Wraps First program
  • Up Only or Up/Down wrap program
  • Emergency Stop button
  • Turntable Jog button
  • Film Carriage Lower & Raise buttons
  • Film tension (Force-to-Load) control
  • Film Clamp Open/Close button
  • Eject Load (Turntable Conveyor Jog) button
  • Separate film carriage raise & lower speed controls
  • Operator programmable turntable speed control
  • Triple beam auto load height sensing photo-eye, detects dark or shiny loads
  • Separate 1 to 12 revolution top & bottom wrap control
  • Selectable Reduced Film Tension parameters for wrapping top and/or bottom of load
  • A – B – C wrap program selector with capability to input and store unique wrapping parameters for each program
STRUCTURAL:
  • All structural steel construction
  • Forklift truck portable base structure design
    • lifting tubes included for front and rear access
  • Structural steel tube machine tower with sheet metal covers
  • Electro-static powder coated paint finish

MISCELLANEOUS OPTIONS:
  • Starter Spare Parts Kit – recommended minimum quantity of parts to stock for this specific machine
  • Ramp for manual pallet jack loading – 48” W x 60” L
    • Powered pallet jacks may require a Porch Extension Option detailed below
  • 24” L x 48” W Porch Extension – for powered pallet jacks
  • 40” L x 48” W Porch Extension – for powered pallet jacks
  • Tower Extension – for 110” wrap height capability (standard is 80”)
    • NOTE: All machines with tower extensions will be hinged and shipped knocked-down.
  • 2ft. Base Extension – for maximum 119” diagonal (71” diagonal is standard)
  • Dusty Package – Complete sealing of the control panel and use of sealing rings on any conduit entries into the control panel
  • Cold Weather Package – down to 33°F
  • Freezer Package (32° F to -20° F) – specify minimum temperature
  • Beacon Light with Red & Green Lens – indicates run, clear or fault conditions
  • 30” film carriage – accommodates standard 20” and 30” wide films
  • Dual Turntables – add second turntable to increase production.
    • NOTE: Includes a Turntable Left-Right momentary selector switch with indicator lights to show the currently selected turntable and magnetic latching relay
LOAD CELL & SCALE PACKAGES:
  • Built-in Load Cells Scale Package – with GSE250 Digital Weight Indicator
    • NOTE 1: If to be used with pallet jacks the OSCBIRMP Scale Ramp option is required
    • NOTE 2: Machine with base extension option requires a factory quote
    • NOTE 3: Not legal for trade – upgrade available as a factory quote
  • Built-In Load Cells Scale Package Ramp – 72” L x 48” W for use with built-in load cells
  • Upgrade digital weight indicator from GSE250 model to Matrix 365. The standard model GSE250 indicator is for load weight only and communication features are not available. Matrix 365 indicators have programming features for printers and communication capability
  • 24” L x 48” W scale porch extension for use with built-in load cells
  • 40” L x 48” W scale porch extension for use with built-in load cells
AIR FLOW & PALLET LOCK:
  • Film splitter – 20” – manual device to split a 20” roll of film into two (2) 10” wide webs, includes a manually adjustable roping device that “ropes” the film webs to the desired size before being applied to load
  • Film splitter – 30” – manual device to split a 30” roll of film into three (3) 10” wide webs, includes a manually adjustable roping device that “ropes” the film webs to the desired size before being applied to load. Includes OP30 30” film carriage option
  • Pallet Lock Roping Device – the most effective method of securing the load to the pallet. Easily programmed using the touchscreen to apply the roped or normal full web film for additional holding force where needed, air flow if required and to prevent film breakage on sharp product or pallet corners
    • NOTE: AIR REQUIRED – Includes a filter-regulator unit and loose-shipped quiet air compressor
  • Delete the filter-regulator unit and loose-shipped quiet air compressor included in option OPLRD if customer supplies the necessary pneumatic requirement

Cousins Packaging Inc
High Profile 2100 SRT

Welcome to our exclusive look at the Cousins High Profile 2100 SRT, a game-changer in the world of pallet wrapping. This video takes you through the ins and outs of one of the most affordable yet feature-rich pallet wrappers on the market. From its robust design to its user-friendly interface, discover how the 2100 SRT is built with quality components to ensure durability and efficiency. Supported by a network of local, qualified distributors, this high-profile turntable model is designed to meet the needs of businesses looking for reliability without breaking the bank. Stay tuned as we dive deeper into what makes the 2100 SRT stand out in its class.
